mild steel channel |U channel|C channel|C shape steel
- Model
- ytdr-C-channel
Item specifics
- Surface Treatment
- bare,oilling,galvanized,painted,ZMA coating
- MOQ
- 2-5 Tons
- Payment method
- TT/LC
- Delivery Time
- 7-35 days
Review
Description

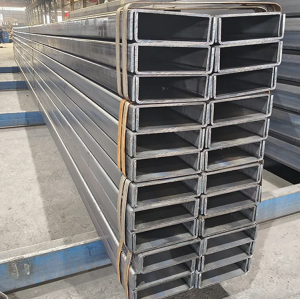

mild steel channel |U channel|C channel|C shape steel
Discover the ultimate solution for your industrial needs with our high-performance mild steel channels. As China's leading manufacturer and trader, we go beyond providing top-quality products - offering galvanization, cutting, polishing, punching, heat treatment, and cold rolling services. Partner with us to revolutionize your business today!
Definition of C-shaped steel
As the name implies, the shape is like the English alphabet "C" structural steel profile. Prevent the use of building materials in steel structure buildings, etc. C-shaped steel is automatically processed and formed by a C-shaped steel forming machine. The C-shaped steel forming machine can automatically complete the forming process of C-shaped steel based on the given C-shaped steel size.
C channel processing process
The normal C channel forming process consists of a total of 9 steps.
Material placement ① - Leveling ② - Forming ③ - Setting ④ - Straightening ⑤ - Measuring length ⑥ - Punching round holes for tie bars ⑦ - Punching elliptical connecting holes ⑧ - Forming and cutting ⑨
How are C channel classified?
Galvanized C-shaped steel, hot-dip galvanized cable tray C-shaped steel, glass card slot C-shaped steel, glass curtain wall C-shaped steel, wiring duct C-shaped steel, reinforced C-shaped steel, double embrace C-shaped steel, single side C-shaped steel, manual forklift C-shaped steel, unequal edge C-shaped steel, straight edge C-shaped steel, inclined edge C-shaped steel, inner rolled edge C-shaped steel, inner inclined edge C-shaped steel, roof (wall) purlin C-shaped steel, automotive profile C-shaped steel, highway column C-shaped steel, solar support C-shaped steel (21-80 series) Template support C-shaped steel, precision C-shaped steel for equipment, etc.
C-shaped steel specification table
C-shaped steel purlins are divided into five specifications based on their height: 80, 100, 120, 140, and 160. The length can be determined according to engineering design, but considering transportation and installation conditions, the total length generally does not exceed 12 meters.
|
C-shaped steel specification table
|
|||
|
Size(mm)
|
Weight（kg/m）
|
Size(mm)
|
Weight（kg/m）
|
|
80×40×20×2.5
|
3.925
|
180×60×20×3
|
8.007
|
|
80×40×20×3
|
4.71
|
180×70×20×2.5
|
7.065
|
100×50×20×2.5 | 4.71 | 180×70×20×3 | 8.478 |
100×50×20×3 | 5.652 | 200×50×20×2.5 | 6.673 |
120×50×20×2.5 | 5.103 | 200×50×20×3 | 8.007 |
120×50×20×3 | 6.123 | 200×60×20×2.5 | 7.065 |
120×60×20×2.5 | 5.495 | 200×60×20×3 | 8.478 |
120×60×20×3 | 6.594 | 200×70×20×2.5 | 7.458 |
120×70×20×2.5 | 5.888 | 200×70×20×3 | 8.949 |
120×70×20×3 | 7.065 | 220×60×20×2.5 | 7.4567 |
140×50×20×2.5 | 5.495 | 220×60×20×3 | 8.949 |
140×50×20×3 | 6.594 | 220×70×20×2.5 | 7.85 |
160×50×20×2.5 | 5.888 | 220×70×20×3 | 9.42 |
160×50×20×3 | 7.065 | 250×75×20×2.5 | 8.634 |
160×60×20×2.5 | 6.28 | 250×75×20×3 | 10.362 |
160×60×20×3 | 7.536 | 280×80×20×2.5 | 9.42 |
160×70×20×2.5 | 6.673 | 280×80×20×3 | 11.304 |
160×70×20×3 | 8.007 | 300×80×20×2.5 | 9.813 |
180×50×20×2.5 | 6.28 | 300×80×20×3 | 11.775 |
180×50×20×3 | 7.536 | ||
180×60×20×2.5 | 6.673 | ||
