ASTM steel profiles 4 inch h beam
- Model
- h beam
Item specifics
- Size
- 100*50-700*300mm
- Web Thickness
- 5-16mm
- Web Width
- 50--300mm
- Flange Thickness
- 4.5-23mm
- Flange Width
- 50-400mm
Review
Description

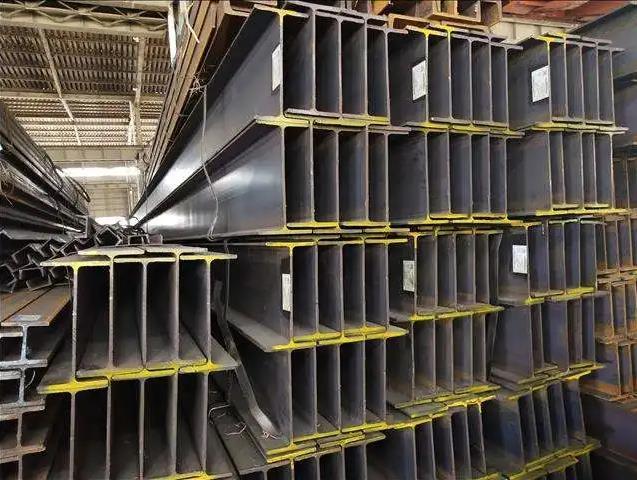

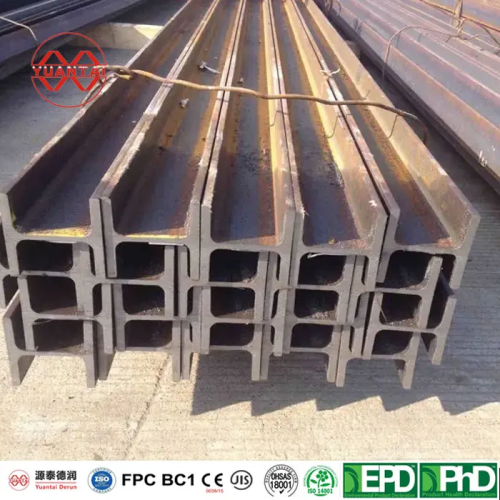

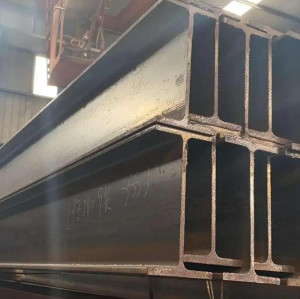

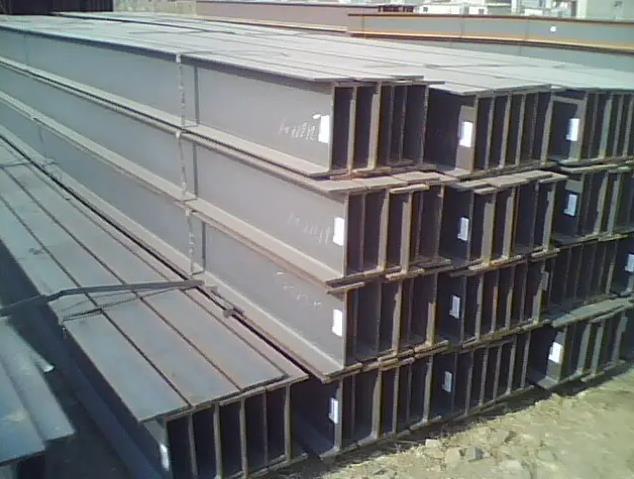

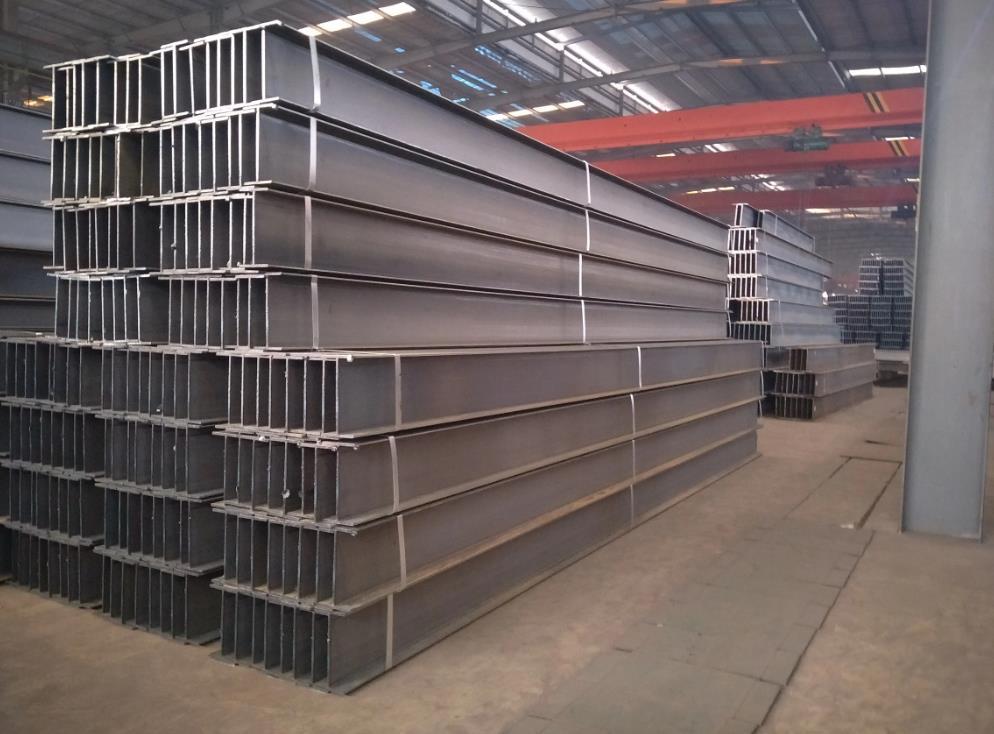

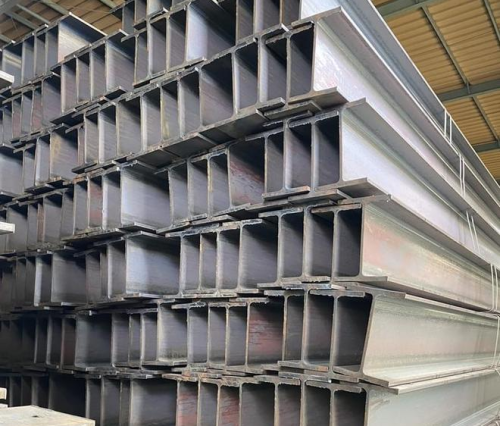

H Section
H-beam in steel structure engineering is a kind of economic section and efficient profile with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio, named because its section is the same as the letter “H” in English. Since all parts of H-beam are arranged at right angles, H-beam has the advantages of strong bending resistance in all directions, simple construction, cost saving and light weight of structure, etc., and has been widely used.
| Size | 100*50-700*300mm |
| Web Thickness | 5-16mm |
| Web Width | 50--300mm |
| Flange Thickness | 4.5-23mm |
Flange Width | 50-400mm |
Length | 1-12m or as customer request |
Standard | AISI,ASTM,DIN,JIS,GB ,JIS,SUS,EN,BS ISO.etc |
Shape | H Channel/I Channel |
Technique | Hot rolled/Cold Rolled/Galvanized |
Surface Treatment | Hot Dip Galvanized, Painting or Black. |
Application | Construction,Decoration,Ship,Medical Equipment,Machinery,Mechanical&manufacture,Steel structure,Shipbuilding,Bridging, Automobile chassis |
Carbon Steel H-beam：
Height:100-900mm
Width:50-400mm
Web thickness:5-30mm
Flange thickness:7-40mm
Standard:ASTM,AISI,JIS,DIN,EN,BS
Processing Type:Cutting, bending,stamping,welding,cnc machining
Cutting Type :Laser cutting;water-jet cutting;flame cutting
Surface Treatment：1),Bared2),Black painted (varnish coating)3),Galvanized4),With oiled-covered
Application:Construction,Decoration,Ship,Medical Equipment,Machinery,etc
Technique:Hot Rolled Edge:Mill Edge/ Silt Edge
Grade：1015,1020,1035,1045,1055,1060,1213,1140,1215,9255,9262,1039,1025,1335,1330,1050,1095,
4520,2515,3135,3415,3310,9840,8620,8740,4340,5015,5132,5140,5115,5155,4130,4137,4135,4140,
4142,6150,Ck10,Ck15,Ck22,Ck25,Ck30,Ck35,Ck40,Ck45,Ck50, 30Mn4,40Mn4 12Cr1MoV Cr5Mo
15CrMo 30CrMo 40CrMo 20SiMn 12Cr1MoVG 20CrNiMo 15CrMoG A3642CrMo 40CrNiMoA 50CrV
