Customized steel hollow section S690Q high-strength steel pipe welded pipe for marine engineering machinery manufacturing
- Model
- hfw-yt-068
Item specifics
- Thickness
- 0.5- 60 mm
- OD(Outer diameter)
- 10*10-1000*1000mm 10*15-800*1200mm
- Certification
- CE,LEED,BV,PHD&EPD,BC1,EN 10210,EN10219,ISO9000
- Tolerance
- as required
- Length
- 0.5-24M according to client requirement
- Standards
- ASTM A500/A501,EN10219,EN10210
- Materials
- Gr.A, Gr.B, Gr.C, S235, S275, S355,S420,S460, A36,
- Delivery Time
- 7-30 Days
Review
Description
Customized steel hollow section S690Q high-strength steel pipe welded pipe for marine engineering machinery manufacturing
Material Analysis of S690Q European Elevation Strong Plate
S690Q steel plate is a quenched and tempered high-strength steel plate, with "S" representing its grade as an European standard, and the corresponding national standard is Q690D high-strength structural steel. Used for the manufacturing of key components with low temperature resistance and high strength, construction machinery, mining machinery structures, etc.
Executive standard for S690Q high-strength plate steel pipe:
EN10025-6
Delivery status of S690Q high-strength plate steel hollow section:
Quenching and tempering
Note: Directly quenching and tempering after hot rolling is considered equivalent to conventional quenching and tempering.
Packaging, Marking, and Quality Certificate of S690Q High Strength Pipe
The packaging, marking, and quality certificate of S690Q high-strength pipe should comply with the provisions of GB/T 247.
Chemical composition of S690Q high-strength steel pipe
|
Grade
|
C | Si | Mn | P | S | N |
B
|
Cr
|
Cu | Mo |
Nb
|
Ni | Ti | V | Zr | Carbon equivalent | ||
|
Not greater than |
≤ | ≤ | ≤ | ≤ | ≤ | ≤ |
≤
|
≤
|
≤ | ≤ |
≤
|
≤ | ≤ | ≤ | ≤ | ≤ | ≤ | ≤ |
|
S690Q
|
0.2 | 0.8 | 1.7 | 0.025 | 0.015 | 0.02 |
0.005
|
1.5
|
0.5 | 0.7 |
0.06
|
2 | 0.05 | 0.12 | 0.15 | 0.65 | 0.77 | 0.83 |
Mechanical property S690Q steel pipe
|
Wall Thickness（mm）
|
Yield strength（MPa）
|
Tensile strength（MPa）
|
Elongation rate
|
|
3-50
|
690
|
770-940
|
≥14
|
|
50-100
|
650
|
740-930
|
|
100-150 | 630 | 710-900 | |
S690Q hollow section impact test
|
Steel Grade
|
Numeric code
|
Test temperature ° C
|
Impact energy J
|
|
S690Q
|
1.8931
|
0
|
40
|
|
-20
|
30
|

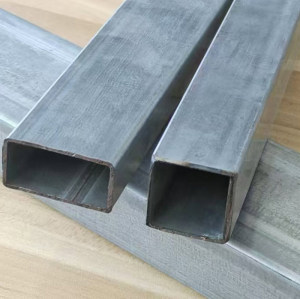

Welded pipe for marine engineering machinery detail
Good welding performance
S690Q steel pipe orifice is very flat，Tight weld
The S690Q steel hollow section surface is smooth
The S690Q steel hollow section adopts controlled rolling technology
S690Q hollow section with pure steel quality
The content of harmful elements S and P is relatively low
Raw materials Guaranteed quality
Large factory direct supply，Guaranteed quality
Each hss steel pipe 100% complies with international standards
Each hss steel pipe is inspected layer by layer
steel hss OEM&ODM
Yuantai Derun steel hss accepts OEM and ODM
S690Q Pipe Classification
S690Q pipes can be referred to as S690Q alloy steel pipes, S690Q steel pipes, S690Q stainless steel seamless pipes, S690Q seamless pipes, S690Q stainless steel welded pipes, S690Q welded pipes, S690Q stainless steel precision pipes, S690Q precision pipes, S690Q capillary pipes, etc.
Our Advantages
》》The industry is thinking, we have achieved
1. For ten consecutive years, the industry's failure rate has been as low as rare. We serve wholeheartedly, only to meet the needs of customers!
2. Long after-sales service, - year warranty, lifelong maintenance.
3. I have visited the customer's factory multiple times to understand their material usage and put myself in the customer's shoes.
》》Advanced technology creates superior product quality
1. High end equipment | Advanced precision machining equipment, special types of work and precision are equally indispensable.
2. Exquisite Technology | Hire highly skilled technicians with high salaries, creating exciting sparks between high-end equipment and exquisite technology.
3. Heavy asset model I: steel sales+milling processing+CNC processing, three-level evolution, one-stop service.
4. Stable quality, best-selling globally.
